Alazar ATS9462 PCIe Digitizer/s

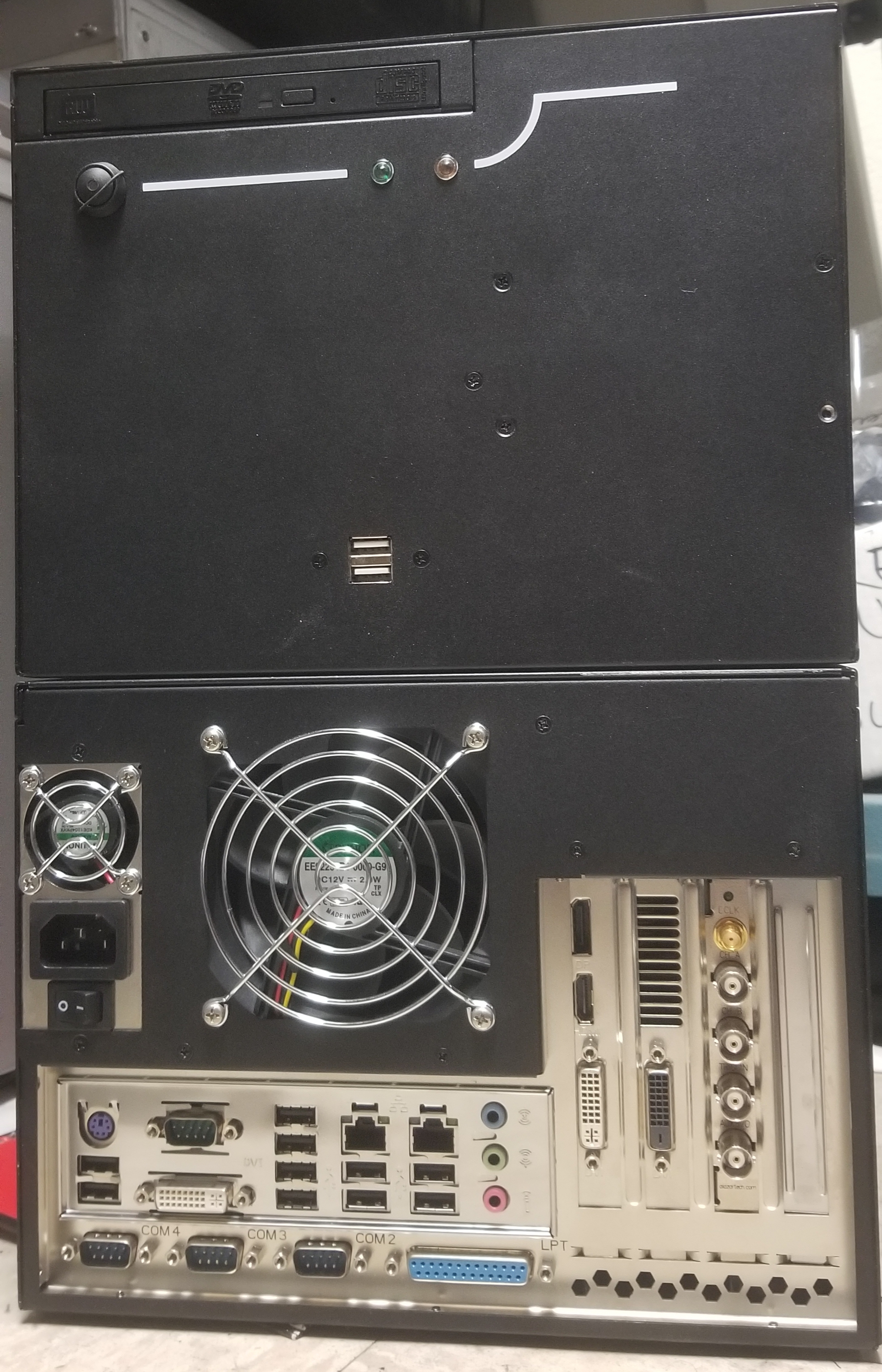

Alazar ATS9462 PCIe Digitizer 16 bit 180MS/s 720MB/s with Intel i7 PC Only $1750

COMPLETE SYSTEM, JUST ADD A MONITOR!

180 MS/s Real Time Sampling per channel

Up to 512 Megasamples of on-board acquisition memory

720 MB/s data throughput to PC memory

2 Channels sampled at 16 bit resolution

65 MHz full power bandwidth

±200 mV to ±16 V Input Range

73.9 dB Signal to Noise Ratio

Continuous Streaming Mode

Trigger Input & Trigger Output connectors

¾-Length PCIe x4 Card

AlazarDSO Software allows quick start-up

SDK for C/C++, C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
